Supervised by Prof. Carola Zwick
Bachelor Project, July 2018
Tools:
Google Speech API, Google Natural Language API, Quickdraw Dataset, Processing, After
Effects
Idea:
Language and images are closely intertwined: We think in pictures and we explain facts as
spatial constellations. What if the spoken word could be transformed into dynamic visual
worlds in real time? Speech input, machine learning and recurrent neural networks for image
generation allow to com- puter generate complex imaginary worlds that follow the narrator
and thus create complex animations controlled by linguistic structures.
Create a Virtual World while Speaking
In the model, the objects have their default position value x, y, and z index. A camera has
been applied to open our eyes to see this world.
“I’m going to the house.” - Going forward view
“I look to the left/right.” - Rotating to the left/right view
Initial Object Position
SkyObject: clouds, sun, moon, airplane, stars…
AirObject: butterfly, bird, mosquito…
FloorObject: house, flowers, building, apple, girl, shoes…
Real time Voice Recognition and Multi language Detection

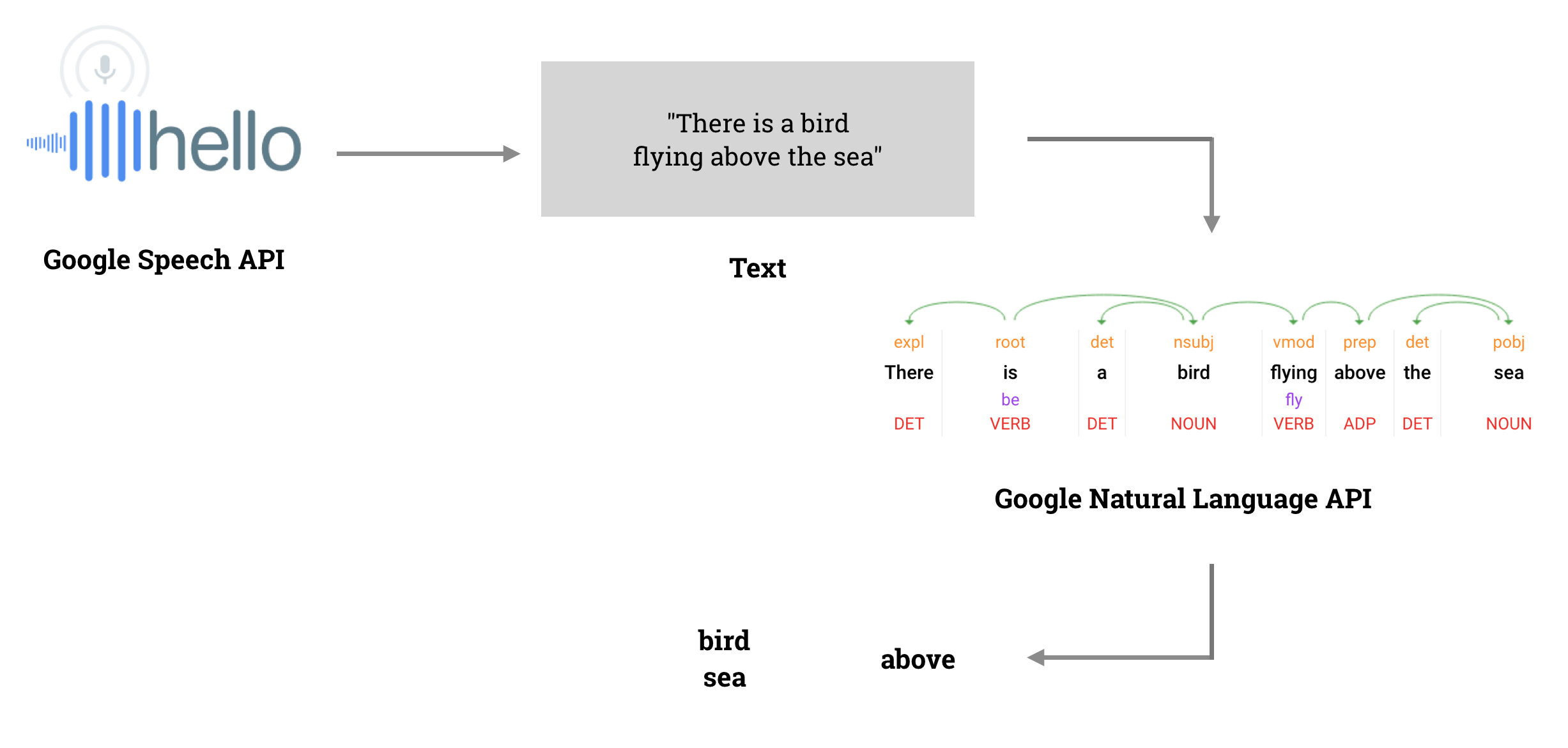

With Google Speech API and Google Natural Language API, it is able to extract nouns and
adpostions like “above”,“under” and so on from the real time streaming. RecognizeStream,
getEntities and analyzeSyntax are used to realize the input part.

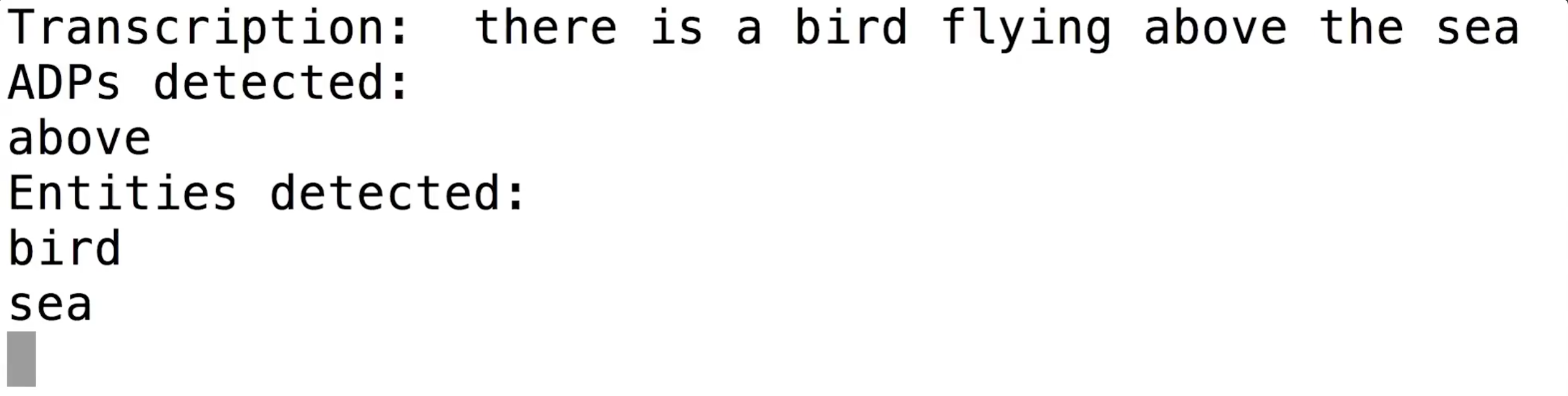

For example. “There is a bird flying above the sea”, the computer will return “sea”, “bird”
and “above” in the end.

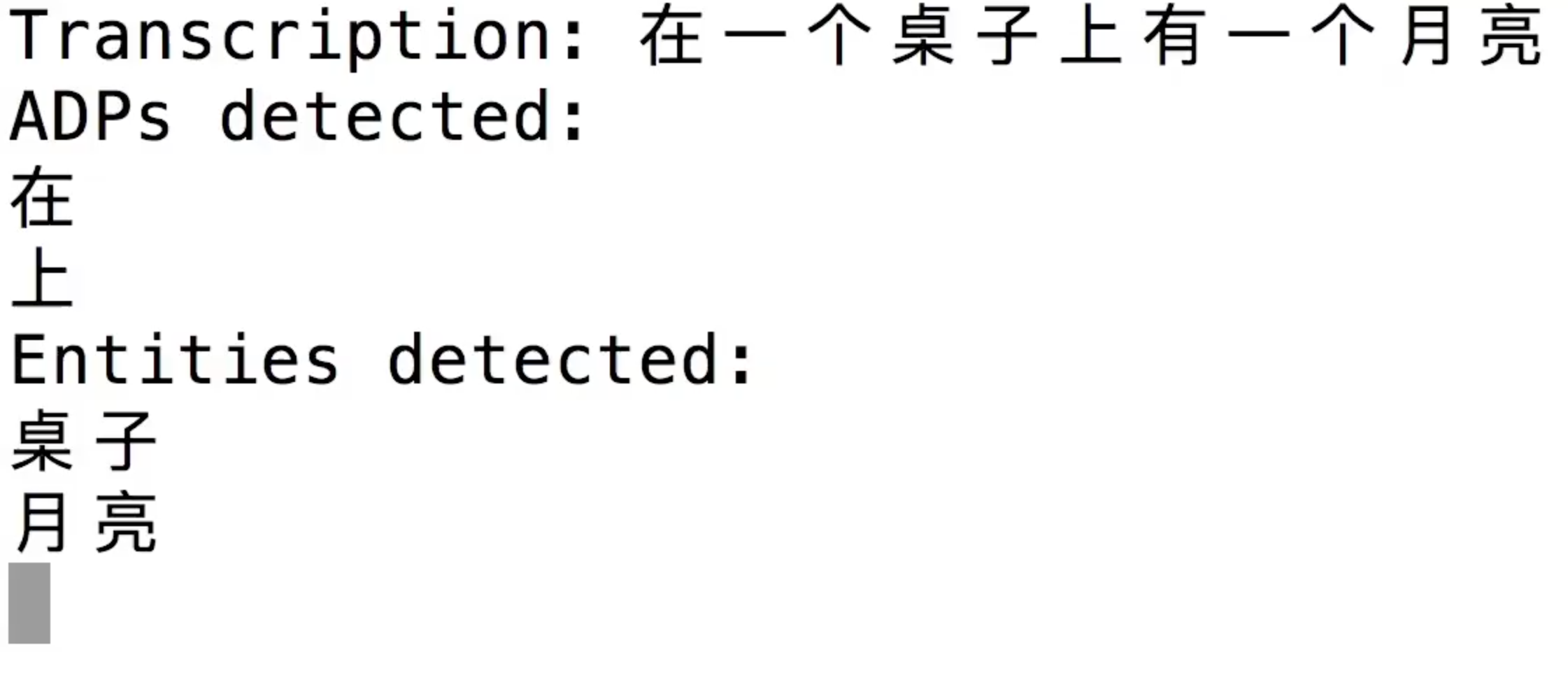

Besides, not only English can be recognized, but also many other languages like Chinese,
French, German and so on.
Quickdraw Dataset
Quick, Draw! is an AI experiment from Google that has delighted millions of people across
the world. The game asks users to draw a doodle, then the game’s AI tries to guess what it
is.
The richness and the huge amount of data as well as the simplicity of human doodlings, which
contains a common understanding of human depicted common objects. It is a visual language of
stereotypes of flower”, “mountain”, “cloud”, “river” etc. Over a billion doodles have been
drawn by people playing the game and subsequently collected into this anonymized dataset.

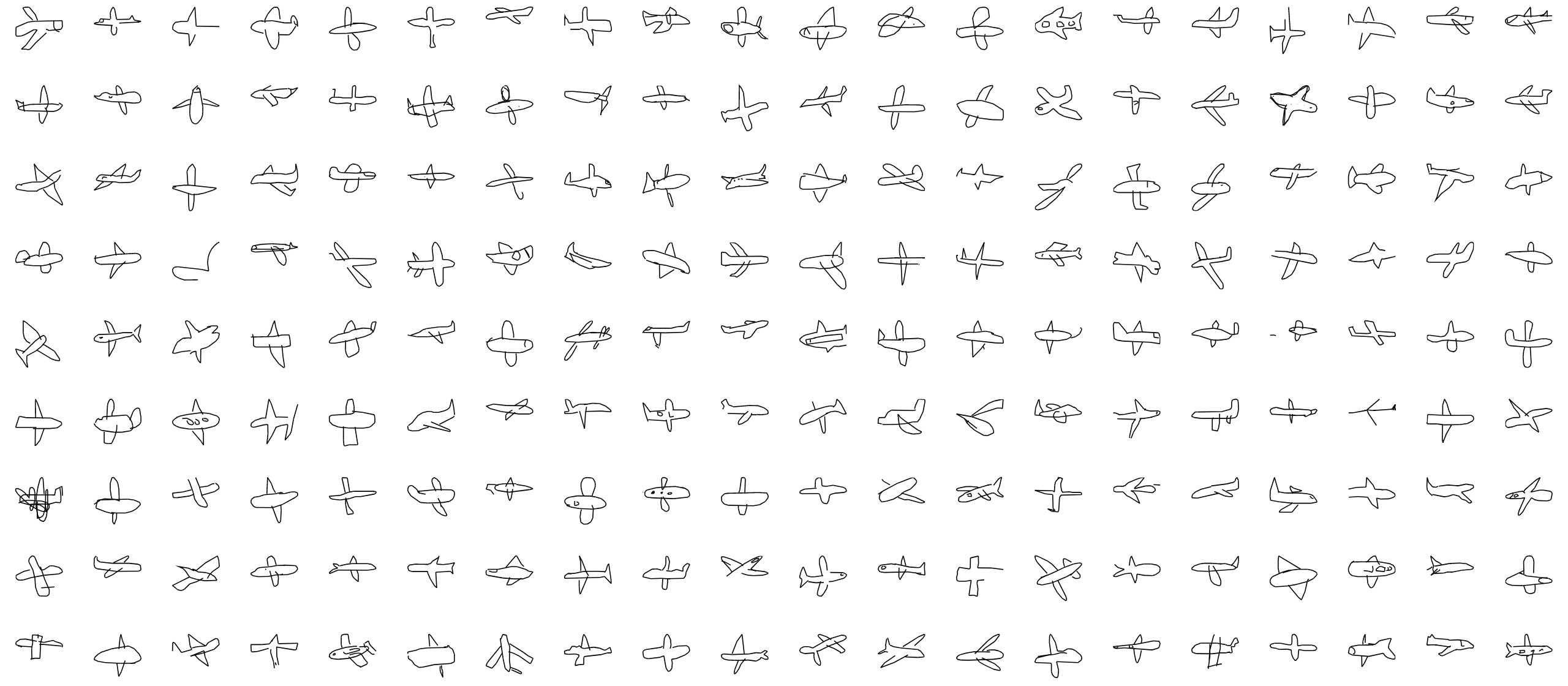

different airplanes drawn by different people in Quickdraw
Creating a sense of hand drawn animation

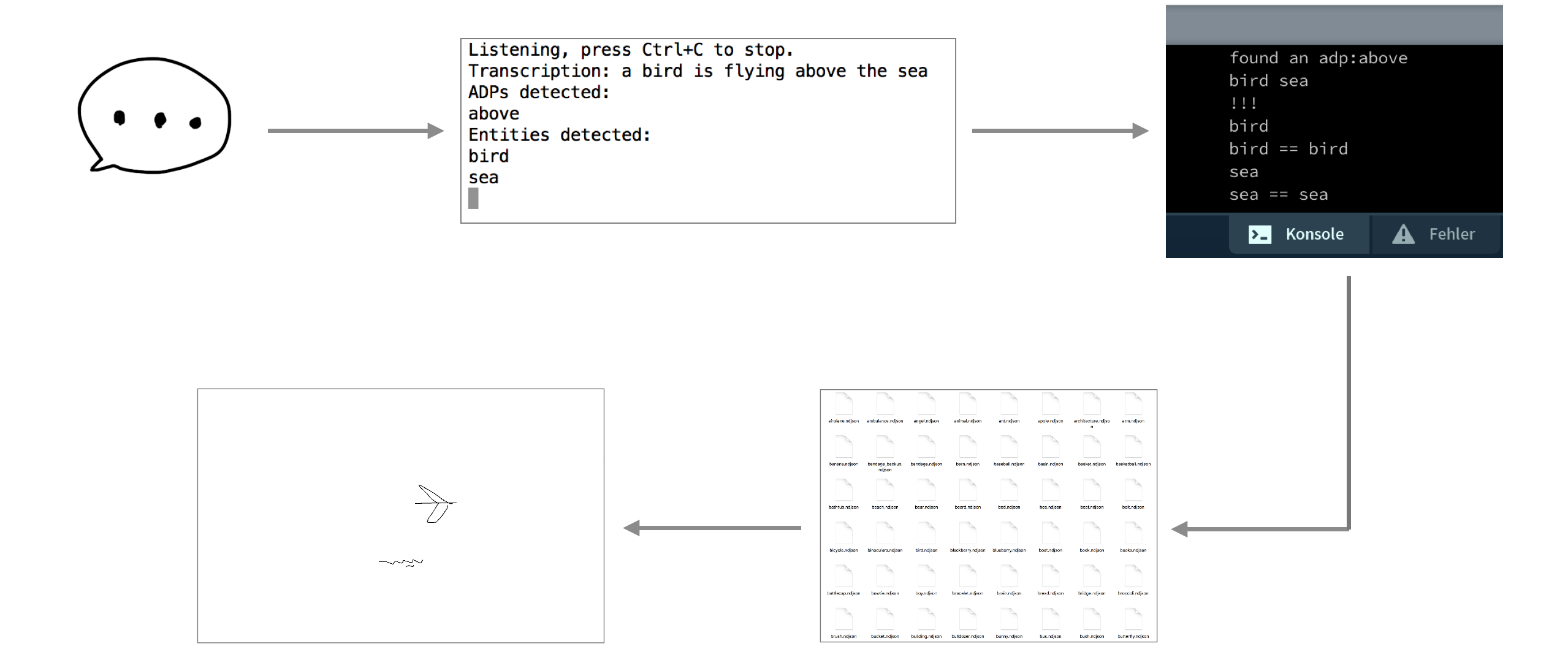

Process from free speech to animation
